Hanging a mountain bike on the wall
In short: A mountain bike can easily be hung on the wall – what matters is handlebar width, frame shape and weight. Hardtails with a straight top tube can usually be hung horizontally without any problems. For full-suspension bikes with a steeply sloping top tube, very wide handlebars or a lot of weight, a vertical solution on the front wheel is often the better choice.
What makes a mountain bike on the wall different?
A mountain bike differs from a road bike or city bike in several ways. You should know these features before buying a mount:
- Wide handlebars: Modern MTB handlebars are typically around 72–80 cm wide. This means the bike sticks further out into the room on the wall, and the handlebars need space on both sides.
- Sloping top tube: Many frames have a steeply sloping top tube to give you more freedom of movement over the saddle. Hung horizontally, the bike then tips backwards.
- Suspension fork and shock: They make the bike heavier and shift the centre of gravity towards the front.
- Dropper post: A dropper seatpost often has a cable running along the top tube or inside the frame.
- Weight: Hardtails weigh around 11–14 kg, full-suspension bikes around 13–16 kg – so without a motor, well within limits.
Horizontal or vertical: what suits which MTB?
| Bike | Horizontal on the top tube | Vertical on the front wheel |
|---|---|---|
| Hardtail with straight top tube | well suited | possible |
| Full-suspension with slightly sloping top tube | usually fine, check the centre of gravity | well suited |
| Full-suspension with steeply sloping top tube | difficult, bike tips | usually the better choice |
| Handlebars wider than approx. 80 cm | needs a lot of wall width | saves width |
| E-MTB | only with a very heavy-duty mount | floor stand is better |
The horizontal option looks calmer and works well in a hallway or living room. Vertical saves wall width, but the bike sticks out into the room by its full length, around 170–190 cm. In a cellar or garage that often doesn't matter; in your living space it usually does.
Wide handlebars: does the bike have to hang straight?
Wide MTB handlebars are not a deal-breaker. When hung horizontally, the front wheel simply turns in a little with the handlebars, so the handlebars sit at an angle to the wall. The bike still holds securely. If you prefer it to look straight, secure the front wheel with a small felt wheel strap. Leave enough space to the left and right of the mount so you don't catch your shoulder or bag on the end of the handlebars.
Suspension fork, shock and dropper: what to look out for?
Most manufacturers consider it unproblematic to hang a mountain bike horizontally or vertically. Still, a few points don't hurt:
- Fully extend or fully lower the dropper – whichever way the bike sits best in the mount. Make sure no cable gets trapped between the top tube and the contact surface.
- Check the cables: Externally routed cables on the top tube shouldn't rest directly on the contact surface. Turn the bike a little if necessary.
- Suspension: Don't let the fork or shock press against the wall or the mount.
- Hydraulic brakes: If the lever feels spongy after taking the bike down, pump it a few times. If it stays spongy, take it to a workshop.
- Dirt: After a muddy ride, give the tyres and down tube a quick wipe before the bike goes on a light-coloured wall.
More detail: Does hanging a bike damage it?
When does a Bicycledudes mount fit – and when not?

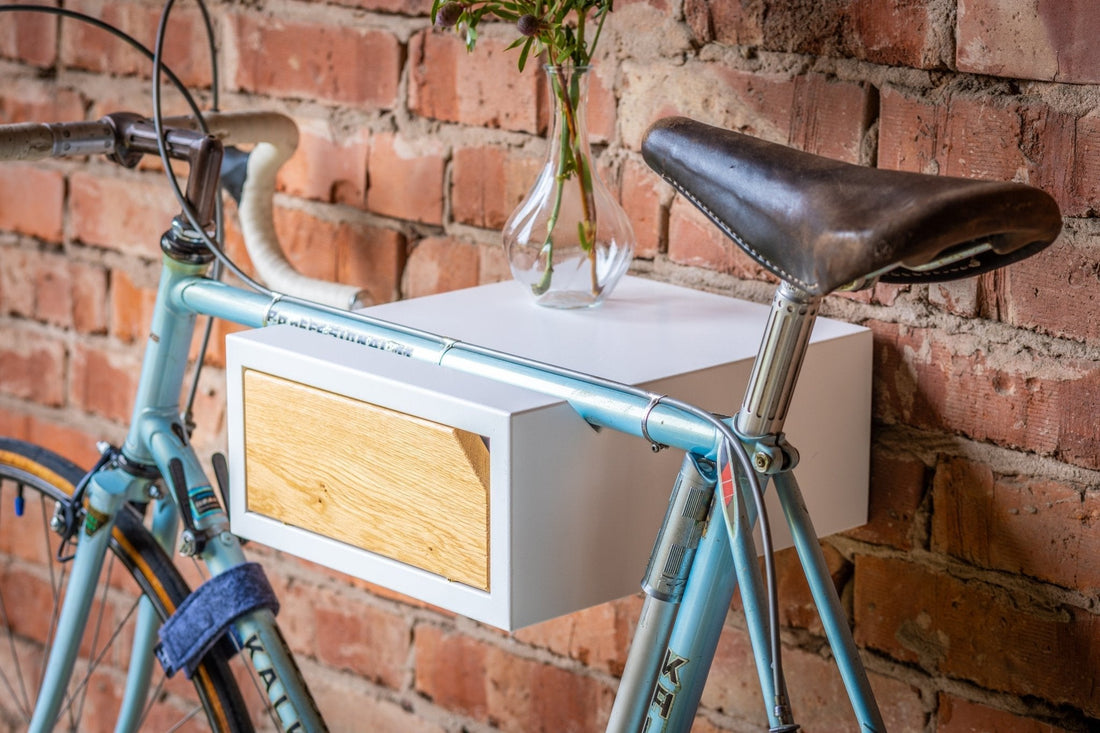

Our wooden mounts are built so that the top tube rests horizontally. This works well for hardtails and for full-suspension bikes with only a slightly sloping top tube, as long as the bike weighs under around 20 kg. Handlebars up to around 60 cm fit straight; wider MTB handlebars turn inwards – but the bike still holds.
For a hardtail in the hallway, a simple wooden frame such as Oskar or a mount with a storage compartment such as Fritz, which has room for gloves and a multitool, would work well, for example. Check in advance in the Fitting Guide whether your top tube fits the opening. Our mounts are not suitable for e-MTBs over 20 kg or for frames with a steeply sloping or very short top tube – here a vertical hook or a floor stand is the more honest choice. Our homepage gives you an overview of our oak and birch bike wall mount range.
Frequently asked questions
Can you hang a full-suspension bike on the wall?
Yes. With a slightly sloping top tube it usually works horizontally; with a steeply sloping top tube, vertical on the front wheel is often the more stable solution.
How much space does a mountain bike need on the wall?
Horizontally, roughly the length of the bike in wall width plus room for the handlebars, which stick out into the room by around 35–45 cm depending on their width. Vertically, roughly the handlebar width on the wall and the length of the bike into the room.
Does hanging vertically damage the suspension fork?
Generally not. Many manufacturers see no problems. If in doubt, the fork manufacturer's information will help.
At what height should an MTB hang?
So that you can lift it comfortably and the tyres don't drag on the floor. Tips on height can be found in our guide Installing a bike wall mount.
